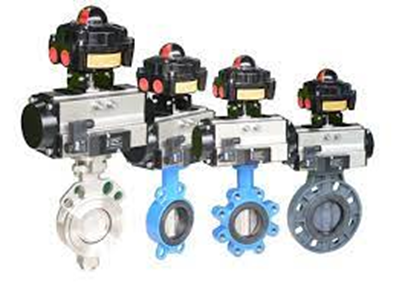

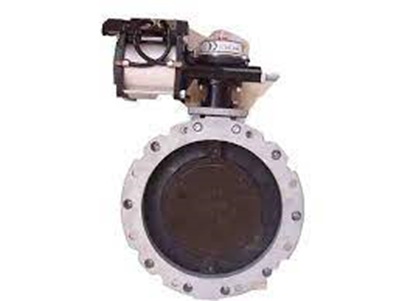

Pneumatic Butterfly Valve

Product Features

Ø = DIN 100 ~ DIN 400

Standard size :EN 558 Series 20; ISO 5752; API 609

Connecting flange: DIN 2501 PN 2.5/6/10/16; ANSI B 16.5, level 150

Connection flange surface design: DIN 2526, form A

Actuator coupling flange :EN ISO 5211 or DIN 5482

Valve designation: DIN EN 19

Leak test: EN 12 266-1, EN 12 266-2, Class A

Operating temperature: -20 °C ~ 90 °C (-4 °F ~ 194 °F)

Differential pressure: Maximum 2.5 bar (36.3 PSI)

Operating pressure: Maximum 2.5 bar (36.3 PSI)

Advantage

Few components

Replaceable valve plate

Replaceable seal

High wear resistance

Easy installation

Easy maintenance

Spot delivery
