Pulse Solenoid Valve

The Pulse Solenoid Valve is a combination of solenoid valve, pilot valve and pulse valve, which is directly controlled by electrical signal.

Product Description

The great operating-performance of dust collector air purging valve reflects in: Sensitive and reliable signal, Low internal-resistance, Large gas-displacement, High airflow impact-force, Stable working, Long operating-life.

Technical parameters:

Connection port(G)	3/4'',1'',1-1/2'',2'',2-1/2'',3''
DN (mm)	20,25,40,50,62,76
Material of valve body	aluminum
Working pressure	0.2---0.7Mpa (58Psi--87Psi)
Working medium	clean air
Voltage	DC24V/AC220V/AC110V/50Hz
Current	0.8A(0.05A)
Temperature	-10.C--80.C (14.F--176.F)
The relative humidity of air	no more than 85%

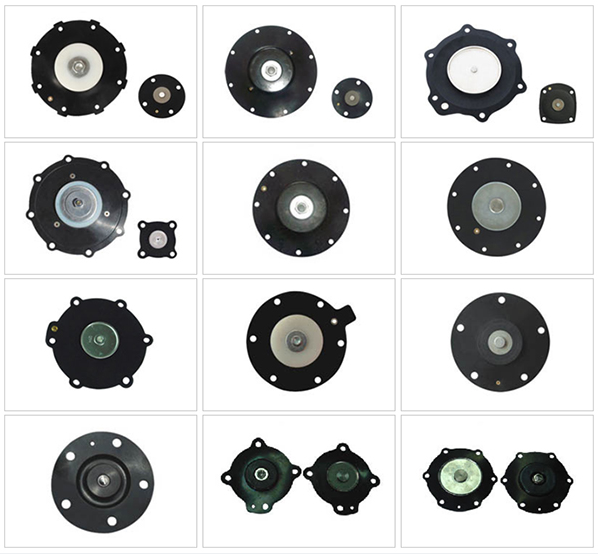

Diaphragm life:	1 million times(5 years)
