Z type Bucket Elevator

Product Description

Z Bucket Conveyor Machine is one of the most efficient ways to elevate bulk materials vertically. It consists of a series of buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the unit. The buckets are located in a casing or housing to contain the material. Bulk materials are loaded into each bucket as the bucket moves past an inlet point.

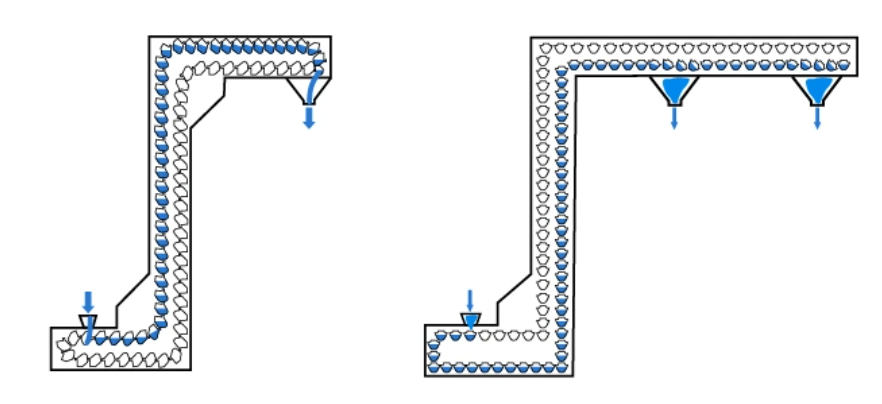

Working principle of Z Bucket Conveyor Machine
The buckets carry the raw materials from the bottom of machine, and lift them to the top with the rotation of chain, turn down after by passing the wheel at the top and throw down the materials into the receiving tank. And the bucket elevator usually are enclosed which can prevent the dust flying in a mess in the bucket elevator.

Technical Parameter

Customized
