●The industry classic innovation machine.
●Simple structure,complex function.
●Ring-die repair and chamfering tool.
●No matter small holes or big holes,it can be do well.
●Ring die dedicated drilling system. Mature hardware and software systems,use-friendly,intuitive interface,stable performance,no programming,the relevant parameters of the hole through the CNC system interface can be filled.

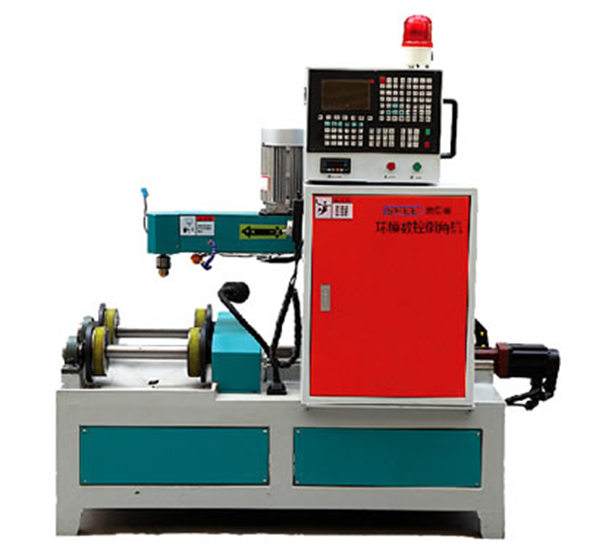

CNC automatic feeding pellet ring die countersink chamfering machine with CE(MLT-DJ370F)
Technical Description
●The industry classic innovation machine.
●Simple structure,complex function.

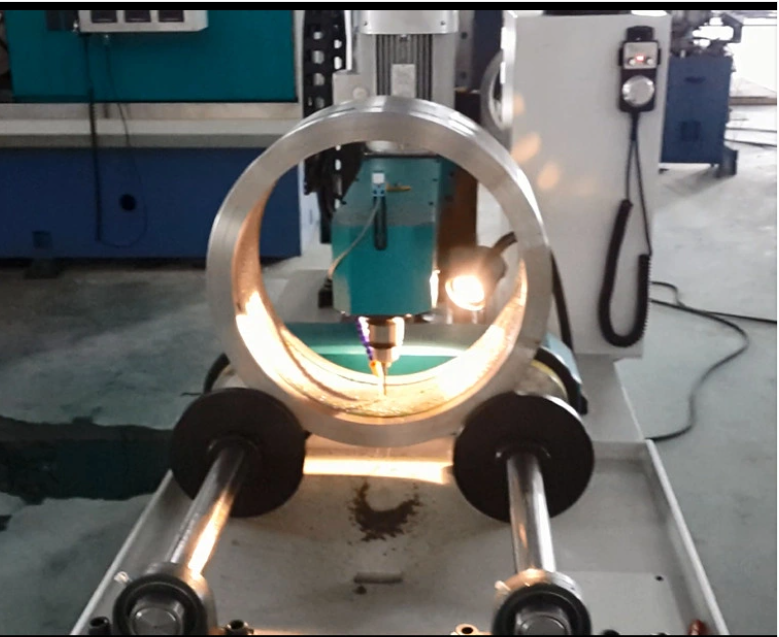

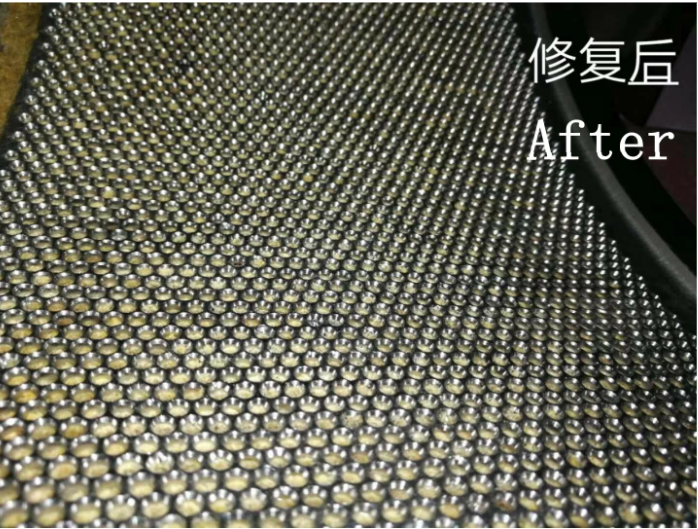

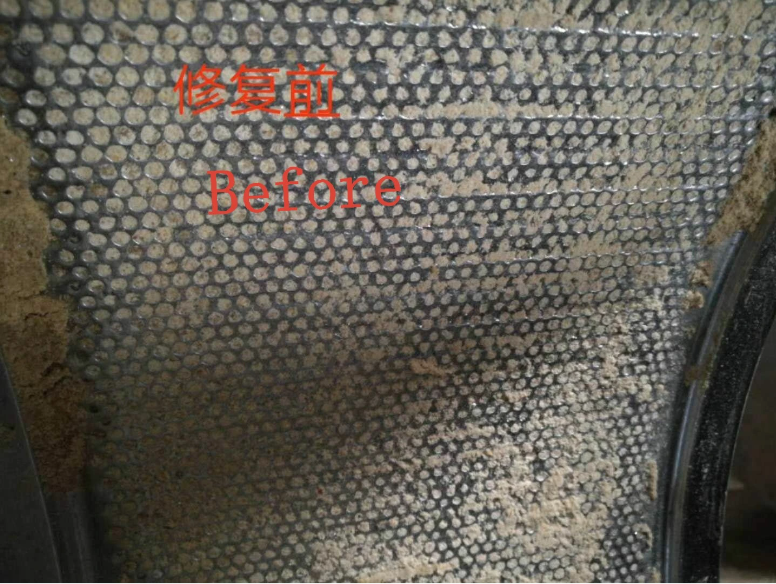

●Ring-die repair and chamfering tool.
●No matter small holes or big holes,it can be do well.
●Ring die dedicated drilling system. Mature hardware and software systems,use-friendly,intuitive interface,stable performance,no programming,the relevant parameters of the hole through the CNC system interface can be filled.
Technical Parameters
| Processing specification | MLT-DJ370F/W | MLT-DJ550F/W | ||
| Before and after the trip | 380mm | 560mm | ||
| Axis Z travel range | 270mm | 330mm | ||
| Chamfering range | 1.0-6mm | 3-12mm | 1.0-6mm | 3-12mm |
| Ring-die size | Φ 350mm | Φ 450mm | ||
| Ring-die size | Φ 900mm | Φ 1100mm | ||
| The thickness of the ring-die | ≤370mm | ≤550mm | ||
| Positioning accuracy | 0.02mm | 0.02mm | ||
| Spindle speed | 0~3000RPM/1500RPM | 0~3000RPM/1500RPM | ||
| Spindle power | 2.2kW | 2.2kW | ||
| The control interface | Chinese/English | Chinese/English | ||
| Floor space (L ×W ×H ) | 1750×900×1700 mm | 2200×900×1700mm | ||
| Host weight | ≈900kg | ≈1000kg | ||
